AC Circuit Breaker Keeps Tripping: #1 Fix

What to Do When Your AC Keeps Tripping the Breaker

What It Means When Your AC Circuit Breaker Keeps Tripping

AC circuit breaker keeps tripping what it means is simple: your air conditioner is pulling more electrical current than its circuit can safely handle, and the breaker is shutting off power to prevent overheating, damaged wiring, or a fire.

Here are the most common reasons it happens:

• Dirty air filter - restricted airflow forces motors to work harder and draw more power

• Dirty condenser coils - trapped heat causes the system to overload

• Failing capacitor - the compressor struggles to start and pulls a massive current surge

• Grounded or failing compressor - internal wiring faults cause an immediate trip

• Broken fan motor - a seized motor draws far more amps than normal

• Loose wiring or a worn-out breaker - faulty connections create heat and arcing

• Extreme heat - hot weather pushes your AC harder, exposing weak components

A tripped breaker is not just an inconvenience. It is your electrical system doing exactly what it is supposed to do — protecting your home. The problem is whatever is forcing it to trip in the first place.

If your AC breaker trips once and stays on after a reset, you may have caught a minor issue early. If it keeps tripping, that is a warning sign that something inside your system or your electrical panel needs attention.

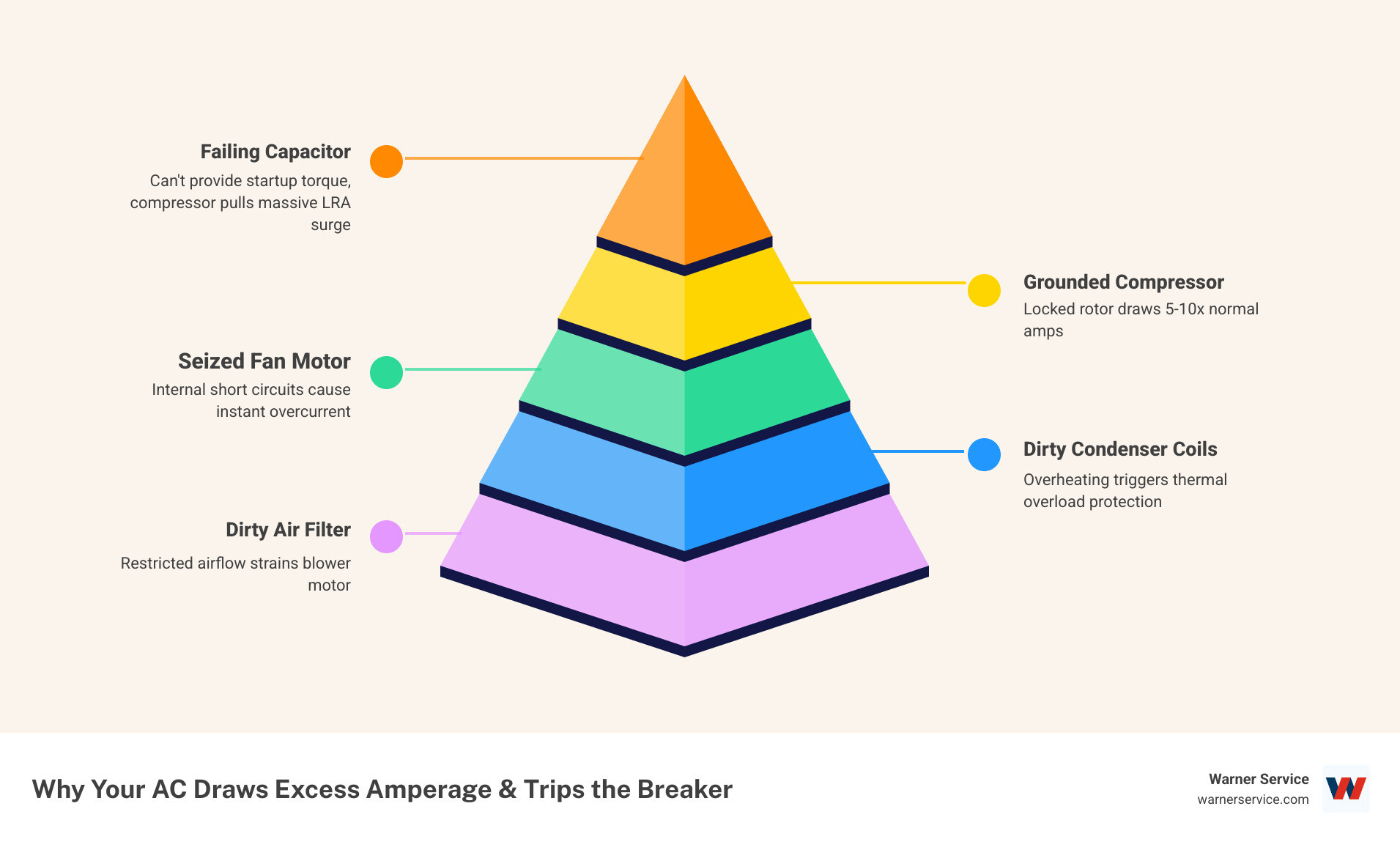

infographic showing why an AC unit draws excess amperage and trips a circuit breaker - ac circuit breaker keeps tripping

Understanding AC Circuit Breaker Keeps Tripping What It Means

double-pole circuit breaker labeled for HVAC in an electrical panel - ac circuit breaker keeps tripping what it means

At its heart, a circuit breaker is a safety switch. It’s the unsung hero of your home’s electrical system. When we talk about ac circuit breaker keeps tripping what it means, we are looking at a system designed for overcurrent protection. Your AC unit usually runs on a dedicated "double-pole" breaker. Unlike the small single breakers that run your bedroom lights, this one is beefier because your air conditioner is the biggest energy consumer in your house.

Every breaker has an amperage rating. If your AC is designed to pull 20 amps but suddenly starts pulling 30, the breaker "trips" or flips to the "off" position. This prevents the wires in your walls from getting so hot that they melt or start a fire.

In electrical diagnostics, we often see three main culprits:

1. Overload: The system is simply working too hard and drawing more power than the breaker allows.

2. Short Circuit: An active "hot" wire touches a neutral wire, causing a sudden, massive spike in current.

3. Ground Fault: This is a specific type of short circuit where electricity leaks out of its intended path and hits the ground (like the metal casing of your unit). Did you know that ground faults, often caused by damaged insulation, make up 98% of all electrical faults? It’s a staggering number that highlights why professional Why Your AC Trips Breakers inspections are so critical.

Common Mechanical Causes for a Tripping Breaker

It might surprise you, but the most common reason for an electrical trip isn't always an electrical part—it’s a mechanical one. When mechanical parts fail or get dirty, they create "resistance." In electrical terms, more resistance equals more heat and a higher draw of electricity.

Take your air filter, for example. We like to call the air filter the "lungs" of your HVAC system. If those lungs are clogged with pet hair, dust, and Maryland humidity, your blower motor has to work twice as hard to pull air through. This extra effort spikes the amperage.

• Airflow — Clean Air Filter: High/Unrestricted — Dirty/Clogged Air Filter: Low/Restricted

• Motor Strain — Clean Air Filter: Normal — Dirty/Clogged Air Filter: High

• Energy Draw — Clean Air Filter: Standard Amperage — Dirty/Clogged Air Filter: 15% - 20% Increase

• Breaker Risk — Clean Air Filter: Low — Dirty/Clogged Air Filter: High

If the airflow is restricted for too long, your evaporator coil (the indoor part) can actually freeze over. This creates a vicious cycle of strain. If you hear a Why Is My AC Making a Grinding Noise, it could be the blower motor crying for help as it struggles against that restricted airflow.

Dirty Condenser Coils and Overheating

The outdoor unit (the condenser) has one job: dump the heat from your home into the outside air. To do this, it uses a series of coils. If these coils are covered in grass clippings, dirt, or "cottonwood fluff" from our local Frederick landscapes, they act like an insulating blanket.

When the heat can't escape, the pressure inside the system rises. Most modern units have a high-pressure switch that might shut the system down, but often the compressor just keeps chugging along, getting hotter and hotter. Eventually, it draws so much power to keep up with the pressure that—click—the breaker trips.

If you notice your unit is struggling or hear a Why Is My AC Making a Hissing Sound, it could be a sign of high-pressure issues or refrigerant leaks that lead to this exact type of overheating.

Fan Motor Failures and Locked Rotors

Your AC has two main fans: the indoor blower and the outdoor condenser fan. If either of these motors starts to fail, the breaker is usually the first to know.

Motors use "windings" (coils of wire) to create a magnetic field that spins the blades. Over time, heat can melt the insulation on these windings, causing a short. Alternatively, the bearings in the motor can seize up. When a motor tries to start but can't turn, it hits what we call Locked Rotor Amps (LRA). This is a massive surge of electricity—often 5 to 6 times the normal running current. It’s an instant recipe for a tripped breaker.

If you hear Why AC Unit Is Making Clicking Sounds, it might be the motor trying and failing to engage before the breaker cuts the power for safety.

Electrical Issues and Component Failures

Sometimes the problem is purely electrical. Over time, the vibrations from your unit can loosen wire connections. Loose wires create "arcing," where electricity jumps across a gap. This creates intense heat that can trip the breaker or even melt the plastic housing of the breaker itself.

We also have to look at the "contactor." This is a small device that acts like a bridge, closing the circuit to send power to the compressor. If the contactor gets "pitted" or charred (often from ants or dust getting inside), it won't make a clean connection, causing voltage spikes. If you notice an Is Your AC Making Buzzing Sound, it’s often the sound of a failing electrical component or an arc before a trip occurs. These are clear Emergency AC Repair Signs that you shouldn't ignore.

Failing Capacitors and AC Circuit Breaker Keeps Tripping What It Means

Think of a capacitor like a small, short-term battery that gives your AC motors a "kickstart." The compressor needs a huge jolt of energy to get moving from a dead stop. The start capacitor provides that jolt.

As of May 2026, we are seeing more capacitor failures due to the increased demand on systems during our increasingly humid Mid-Atlantic summers. When a capacitor weakens, it can't provide enough torque to start the motor. The motor then sits there, drawing huge amounts of current (that LRA we mentioned earlier) while trying to start, which snaps the breaker.

Grounded Compressors and Short Circuits

The "grounded compressor" is the one diagnosis every homeowner dreads. This happens when the internal electrical windings of the compressor break down and touch the metal side of the unit. This creates a direct path to the ground, causing a massive short circuit.

When this happens, the breaker will usually trip the very second the AC tries to turn on. You reset it, try again, and boom—it trips immediately. To diagnose this, we use a specialized tool called a megohmmeter to check the integrity of the insulation. In some cases, if a compressor is just "hard starting" (getting old and stubborn), we can install a hard start kit. This gives the compressor an extra boost of power to get it over the hump, potentially saving you from a full replacement for a few more seasons.

Troubleshooting and Safety: When to Call a Pro

If you find yourself standing at your electrical panel wondering why your AC is off, there are a few things you can safely do. But first, a word of caution: Electricity is dangerous. If you see smoke, smell burning plastic, or see sparks, do not touch the breaker. Call us immediately.

If everything looks normal, follow these steps:

1. Check the Thermostat: Make sure it’s set to "Cool" and the temperature is lower than the room temp.

2. The 30-Minute Wait Rule: If you reset the breaker, wait at least 30 minutes before turning the AC back on. This allows the internal pressures in the refrigerant lines to equalize. If you try to start it too soon, the "head pressure" is too high, and it might trip the breaker again just from the strain.

3. Inspect the Filter: This is the #1 DIY fix. If it's grey and fuzzy, swap it out.

4. Clear the Area: Ensure there are at least two feet of clear space around your outdoor unit. No bushes, no tall grass, and no "stuff" leaning against it.

If you’ve done these things and the system still won't stay on, check out our guide on What to Do When Your AC Won't Turn On.

Why AC Circuit Breaker Keeps Tripping What It Means in Extreme Heat

In places like Hagerstown, MD or Leesburg, VA, our summers can get brutal. When the temperature hits 95°F with 90% humidity, your AC has to run longer and harder.

High outdoor temperatures naturally increase the electrical resistance in wires. If your system is already on the edge—maybe the coils are a little dirty or the capacitor is a little weak—the extreme heat will be the "straw that breaks the camel's back."

Interestingly, we sometimes see trips in "heat mode" too for our customers with heat pumps. This can happen if the auxiliary heat strips (which pull a ton of power) kick on at the same time as a struggling compressor, overloading the circuit.

The Dangers of Repeatedly Resetting the Breaker

We get it—it’s hot, and you just want the air to kick back on. But resetting a breaker over and over is like taking a cough drop for pneumonia; you’re treating the symptom, not the disease.

Every time a breaker trips, it creates a small amount of heat and wear. If you keep forcing it, you risk:

• Permanent Motor Damage: Forcing a struggling compressor to start can burn out the motor entirely.

• Fire Hazards: Repeated "arcing" can eventually lead to a fire in the panel or at the unit.

• Arc Faults: In newer homes, you might have AFCI breakers that are even more sensitive to wiring issues.

If your breaker trips a second time, stop. It’s time for AC Repair Frederick MD. A professional technician has the multimeters and gauges needed to find the root cause safely.

Frequently Asked Questions about AC Breaker Trips

Is it safe to keep resetting my AC breaker?

No. You should only attempt to reset it once. If it trips again, there is a legitimate safety fault in the system. Repeatedly resetting can lead to a house fire or the total destruction of your AC compressor.

How many times should I try to reset the breaker before calling a technician?

The "Rule of One" applies here. Reset it once. If it stays on, keep an eye (and ear) on it. If it trips a second time—whether it’s five minutes later or the next day—call a professional.

Can a dirty air filter really cause my breaker to trip?

Absolutely. A clogged filter is like trying to breathe through a thick pillow. It forces the blower motor and the compressor to work significantly harder, which spikes the amperage draw until it exceeds the breaker's limit.

Conclusion

When your ac circuit breaker keeps tripping what it means is that your home is trying to tell you something. Whether it’s a simple cry for a new air filter or a warning that your compressor is nearing the end of its life, ignoring the signal won't make it go away.
