Cast Iron vs PVC for Main Sewer Line Replacements Under Driveways

Are You Choosing the Right Pipe to Survive the Weight of Your Driveway?

Is your home's main drainage system showing signs of failure beneath a heavy concrete slab? Are you prepared to make a critical material choice before the ground freezes solid? When a vital underground pipe deteriorates beneath thousands of pounds of hardscaping, you face a major decision: Cast Iron vs PVC for Main Sewer Line Replacements Under Driveways. This is not just a matter of picking a pipe off a hardware store shelf. You have to decide whether to prioritize the immense crush resistance of traditional cast iron or the seamless root-intrusion resistance of modern PVC.

At Warner Service, our team typically sees a spike in emergency calls when the ground hardens. Handling this major project during the September and October 2026 early fall pre-freeze preparation window is critical. By acting before the winter freeze sets in, you avoid the severe complications of frozen-ground trenching and unpredictable winter soil shifting. A failing line under a driveway is an urgent issue that can rapidly escalate into a total system backup, causing damage inside your home.

For comprehensive solutions, explore our residential plumbing services, or if your line has completely collapsed and your home is backing up, reach out immediately for emergency plumbing repairs.

The Dual Threats Facing Pipes Beneath Hardscapes

Bypassing the basic definitions of what a sewer line does, our plumbing experts want to look directly at the physical realities underground. Pipes located under driveways live in an extreme, high-stress environment. They face continuous mechanical and biological threats that pipes buried under open lawns simply do not experience. There is no universal, one-size-fits-all answer for which pipe is best. The right material depends entirely on which of these threats is dominant on your specific property.

1. The continuous static pressure of the concrete slab: A standard 4-inch-thick concrete driveway slab weighs thousands of pounds. This static weight presses down on the soil below, creating a permanent load on the pipe.

2. The dynamic force of vehicle traffic: Every time you park a 4,000-pound SUV or have a heavy delivery truck pull in, that dynamic weight transfers directly through the soil and compresses the trench below.

3. The biological intrusion of aggressive root systems: In older, tree-lined Frederick neighborhoods, mature trees send out expansive root networks. During dry spells and seasonal transitions, these roots actively hunt for the moisture and oxygen escaping from microscopic pipe flaws.

Mechanical Load and Soil Compression

The physics of static weight from concrete slabs cannot be ignored. Over time, the constant downward pressure forces the soil to compact. When you add the dynamic weight of daily vehicle traffic transferring through that compacted soil, the pipe below experiences immense stress. If the pipe material is too flexible or improperly supported by the surrounding dirt, it will begin to oval or deflect. Over several years, this deflection creates a "belly" or sag in the line where waste accumulates, eventually leading to a complete blockage.

Biological Pressures and Root Intrusion

Tree roots are incredibly opportunistic. They detect the exact locations where moisture, warmth, and oxygen escape from underground pipes. Even a microscopic pinhole or a slightly degraded joint is enough for a hair-like root to enter. Once inside the nutrient-rich environment of the sewer line, that tiny root rapidly expands into a dense mass. The aggressive nature of root systems in mature neighborhoods during seasonal transitions is one of the leading causes of pipe failure. As the root mass grows, it exerts outward pressure, cracking and shattering older, brittle pipes from the inside out.

Cast Iron: The Heavy-Duty Contender for Crush Resistance

In our decades of working on Frederick homes built between 1950 and 1980, we've seen that cast iron has been the backbone of underground municipal and residential plumbing. When it comes to raw structural strength and handling heavy earth loads, cast iron soil pipe is the undisputed heavyweight champion.

Because it is a rigid metal, cast iron does not easily deform. It can withstand the massive, continuous pressure of heavy concrete driveways and shifting soils without deflecting or bending. This rigidity means that even if the soil around the pipe shifts slightly, the pipe itself maintains its perfectly round shape, ensuring the critical 1/4-inch per foot slope for waste to flow away from your home.

However, cast iron is not invincible. It has specific vulnerabilities that homeowners must weigh against its structural benefits. Understanding these pros and cons is essential, especially when planning for early fall pre-freeze preparation to get the heavy installation completed before the ground hardens.

• Pro: Unmatched Crush Resistance. Cast iron easily supports the static weight of concrete and the dynamic weight of heavy vehicles.

• Pro: Sound Deadening. It is incredibly quiet, muffling the sound of rushing water, though this is less critical for a pipe buried deep outdoors.

• Con: Internal Corrosion. Over decades, the inside of a cast iron pipe can rust and scale, creating a rough surface that slows down water flow and snags debris.

• Con: Joint Vulnerability. Cast iron pipes are installed in segments. If the ground shifts significantly, these segmented joints can separate slightly, creating an opening for roots to invade.

• Con: Weight and Labor. The material is exceptionally heavy, making the excavation and installation process more labor-intensive.

PVC: The Seamless Defender Against Root Intrusion

Polyvinyl chloride (PVC) represents the modern evolution of underground piping. When our team installs these systems, we rely on solvent-welded joints instead of the heavy, segmented nature of traditional iron. The chemical solvent essentially melts the plastic together, creating a seamless, monolithic line from your home all the way to the municipal connection at the street.

This seamless construction makes PVC highly resistant to root intrusion. Because there are no weak joints or degrading seals, tree roots simply cannot find an entry point. This characteristic is absolutely critical in older, tree-lined Frederick neighborhoods where aggressive root systems are the primary cause of pipe failure.

While PVC will never rust or corrode, its flexibility is both a strength and a potential weakness. It will not shatter easily, but it can deflect or compress under extreme mechanical loads if the trench is not bedded with absolute precision. Furthermore, while highly durable against most household waste, it is important to understand chemical reactions and PVC pipe damage when the line is exposed to certain harsh industrial substances over long periods.

• Pro: Root-Proof Joints. Solvent-welded connections provide a seamless barrier against moisture-seeking tree roots.

• Pro: Corrosion Resistance. PVC will never rust, scale, or degrade from standard household wastewater.

• Pro: Smooth Interior. The ultra-smooth inner wall ensures maximum flow capacity and prevents debris from snagging.

• Con: Susceptible to Deflection. Under the extreme weight of a driveway, standard Schedule 40 PVC can compress into an oval shape if the surrounding soil shifts.

• Con: Requires Precise Bedding. To survive under heavy hardscaping, PVC often requires upgrading to thicker Schedule 80 pipe (which features a robust 0.432-inch wall thickness on a standard 4-inch line) and demands meticulous trench bedding with gravel to support the sides of the pipe.

Comparing the Elements: Frost Heave vs. Tree Roots

To make an informed decision, you have to look at how these materials perform against the specific environmental stressors of our region. Frederick, MD presents a unique combination of deep winter freezes (with a local frost line reaching roughly 30 inches deep), dense clay soils, and wet springs.

During deep winter freezes, the dense clay soil absorbs water and expands as it turns to ice. This expansion causes a phenomenon known as frost heave, where the ground actually pushes upward and shifts. This subsurface movement puts immense mechanical pressure on anything buried within it. Rigid pipes must be strong enough not to snap, while flexible pipes must be supported enough not to crush.

Conversely, the wet springs accelerate root growth, leading to biological attacks on the pipes during the summer and fall. You must weigh these two competing regional factors based on the exact layout of your property.

• Crush Resistance — Cast Iron Pipe: Exceptional. Easily supports heavy vehicles and concrete slabs. — PVC Pipe (Schedule 40/80): Moderate to High. Requires Schedule 80 and perfect gravel bedding.

• Root Resistance — Cast Iron Pipe: Low to Moderate. Segmented joints can degrade and allow roots in. — PVC Pipe (Schedule 40/80): Exceptional. Solvent-welded joints create a seamless barrier.

• Frost Heave Tolerance — Cast Iron Pipe: High. Rigid structure resists the upward pressure of freezing clay soils. — PVC Pipe (Schedule 40/80): Moderate. Flexibility allows it to move slightly, but risks deflection.

• Joint Type — Cast Iron Pipe: Segmented (gaskets or lead/oakum on older lines). — PVC Pipe (Schedule 40/80): Monolithic (chemically solvent-welded).

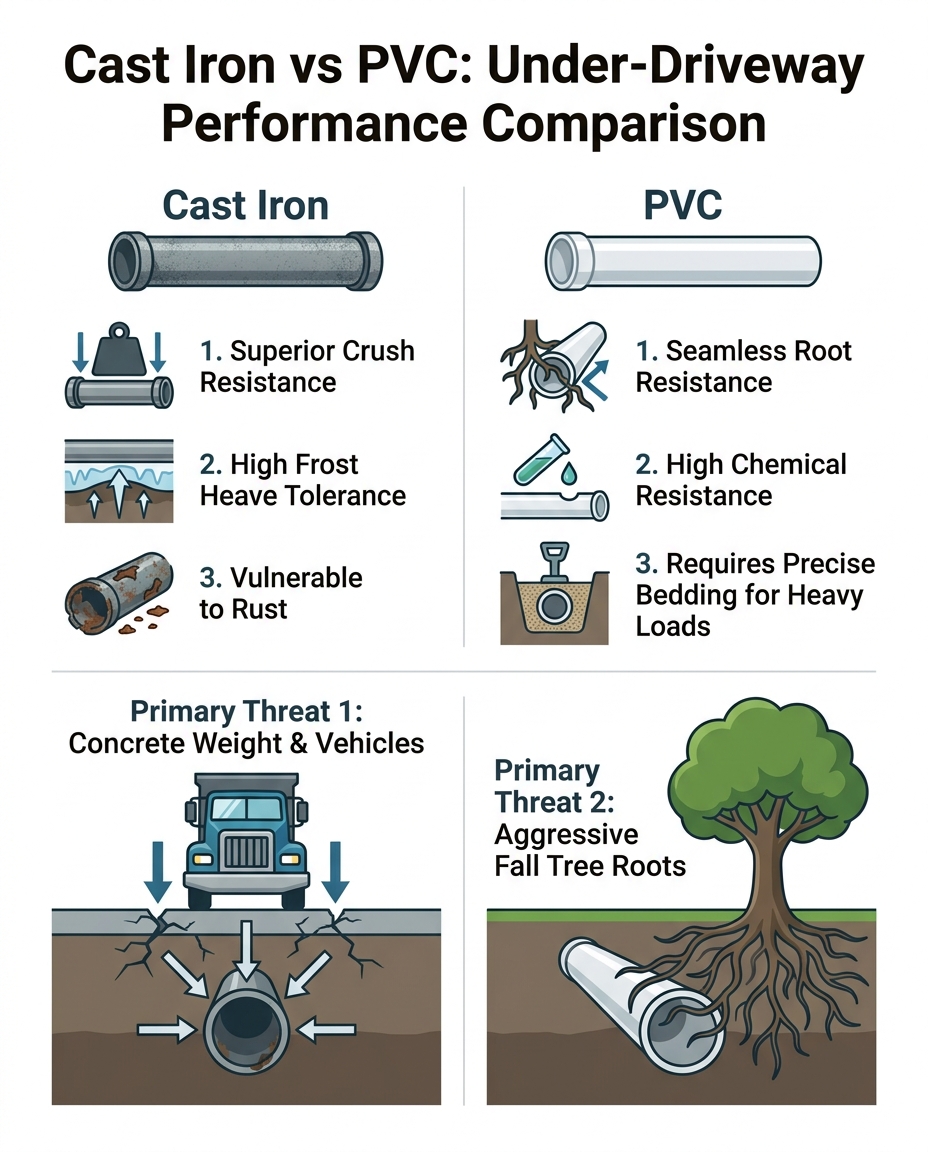

Cast Iron vs PVC: Under-Driveway Performance Comparison

Assessing Your Property's Primary Risk Factors

How do you actually choose the right material? Our Warner Service technicians always start with a professional high-definition camera inspection. This is the crucial first step to determine exactly why your current line failed. Once you know the cause, you can match the solution to the risk.

Signs your property favors a Cast Iron replacement:

• You have exceptionally thick or heavy hardscaping above the pipe path.

• You frequently park commercial vehicles, RVs, or heavy trucks on the driveway.

• There are minimal large trees or deep-rooted shrubs near the sewer line trench.

• Your soil shifts dramatically during winter freezes.

Signs your property favors a PVC replacement:

• You live in one of the older, tree-lined Frederick neighborhoods with mature oaks or maples near the driveway.

• The driveway only supports standard passenger vehicle traffic.

• Your soil is highly acidic, which can accelerate the corrosion of metal pipes.

• Your current failure was caused entirely by massive root intrusion, not pipe crushing.

Regardless of which material you choose, the quality of the installation matters just as much as the pipe itself. Securing a Master Work Agreement ensures that this heavy structural work meets guaranteed professional standards. It provides peace of mind that the trench bedding, the joint connections, and the backfill process are executed flawlessly by local experts who understand our unique soil profiles.

Navigating the Logistics of Driveway Excavation

Trenching through a concrete driveway is a major, disruptive project. It requires heavy equipment, careful planning, and a structured approach to minimize downtime and property disruption. This is not a project that can be rushed or handled poorly without risking future sinkholes or driveway cracking.

Timing is everything. In our experience, targeting the early fall pre-freeze preparation window (ideally before late November) is optimal for this work. Once the ground freezes, excavation becomes significantly more difficult, time-consuming, and hard on the machinery. Trenching through frozen clay soil complicates the ability to properly bed the new pipe.

The restoration process is just as critical as the pipe laying. After the new cast iron or PVC line is installed, the trench must be carefully backfilled. The soil and gravel must be compacted in specific layers to ensure the new concrete poured on top has a solid, unyielding foundation. Because this level of heavy excavation is a significant investment, exploring financing options for major plumbing projects can help you manage the costs effectively. Flexible financing allows you to choose the best material and the highest quality installation without compromising due to immediate out-of-pocket constraints.

Frequently Asked Questions About Under-Driveway Sewer Replacements

Which pipe material is best under a concrete driveway?

The best material depends entirely on your property's primary threat. Cast iron is best for crush resistance and supporting heavy loads, while PVC is best for preventing root intrusion. A professional inspection is required to determine whether mechanical weight or biological roots pose the bigger risk to your specific line.

Does PVC crack under the weight of a driveway?

Standard PVC can deflect, compress, or crack if it is not properly bedded in the trench or if it is buried too shallow. This is why installations under heavy loads often require thicker Schedule 80 PVC and precise gravel bedding techniques to support the sidewalls of the pipe against the downward pressure.

How do tree roots affect PVC vs cast iron sewer pipes?

Tree roots easily penetrate older, degraded cast iron joints, searching for moisture and oxygen. Once inside, they expand and can shatter the rigid iron. PVC's solvent-welded joints create a seamless, monolithic barrier that prevents roots from finding an entry point, making it highly resistant to biological intrusion.

How deep should a PVC sewer pipe be under a driveway?

Depth requirements depend heavily on local building codes and regional frost lines. Typically, a professional must ensure the pipe is installed below the local 30-inch freeze zone to prevent frost heave damage. Proper depth also ensures the pipe is insulated from the immediate dynamic weight of vehicles driving on the surface.

Can you replace an old cast iron line with new PVC?

Yes, our professional plumbers frequently transition from failing cast iron systems to modern PVC. This is done using specialized, code-compliant adapters and heavy-duty mechanical couplings that ensure a watertight, secure seal between the two different materials.

Make Your Sewer Line Replacement Decision with Confidence

Understanding exactly how heavy concrete slabs, shifting clay soils, and aggressive tree roots impact cast iron and PVC gives you the criteria you need. You no longer have to guess which material is right for your home. By evaluating your property's specific risks—whether it is the weight of commercial vehicles or the expansive roots of mature trees—you can confidently choose the pipe that will last for decades.

Remember that timing is a crucial factor. Taking advantage of the early fall pre-freeze preparation window ensures the excavation and bedding process goes smoothly before winter weather complicates the heavy digging. If you are noticing slow drains, foul odors, or soggy patches near your driveway, do not wait for a total collapse. Consult with the Warner Service team to assess your property, inspect the line, and secure the structural integrity of your home's plumbing system today.
