Immediate Safety Steps When Your Wall Thermostat Starts Smoking

Is Your Thermostat Emitting Smoke or a Burning Smell?

Are you frantically searching for the immediate safety steps when your wall thermostat starts smoking? If you are currently staring at a wisp of smoke or smelling acrid, melting plastic coming from your wall, that sudden spike of panic is completely understandable. A smoking electrical device inside your living space is a high-stress event that demands instant attention. At Warner Service, our technicians typically see these alarming situations strike when your equipment is under severe stress, such as during a peak summer cooling load in July, pushing older or compromised electrical components past their breaking point.

When faced with this scenario, your first instinct might be to pull the device off the wall to see what is wrong. You must resist that urge. Right now, you are dealing with an active electrical hazard, not a simple mechanical breakdown. Your absolute highest priority is your physical safety and the safety of your home. The only correct response is to isolate the electrical panel to cut the power supply, rather than interacting with the smoking device itself. Securing your entire HVAC system requires professional intervention, but the very first actions you take in these critical moments will prevent a frightening malfunction from escalating into a devastating house fire.

Immediate Safety Actions: What to Do Right Now

When a thermostat begins to smoke, every second counts. The smoke indicates that electrical current is traveling where it shouldn't, generating immense heat and actively melting the plastic housing and wire insulation inside your wall. To mitigate this active fire hazard safely, our team recommends following these emergency steps in exact order:

1. Step 1: Do not touch the thermostat interface. Do not press any buttons to try and turn the system off. Do not attempt to pull the faceplate off the wall. Keep your hands completely away from the device.

2. Step 2: Locate your home's main electrical panel immediately. Move quickly to your garage, basement, utility room, or exterior wall where your primary circuit breaker box is housed.

3. Step 3: Identify and turn off the dedicated breaker for the HVAC equipment. Look for the breaker labeled "HVAC," "Furnace," "Air Conditioner," or "Air Handler." Flip this switch firmly to the "Off" position. This action kills the power to the 24-volt C-wire thermostat connection, instantly stopping the flow of electricity that is generating the heat and smoke.

4. Step 4: Monitor the area for lingering smoke or fire. Return to the hallway or room where the thermostat is located. The smoke should begin to dissipate within a few minutes of cutting the power. If the smoke intensifies, or if you see active flames behind the wall, evacuate your home immediately and call 911.

5. Step 5: Contact emergency professionals. Once the power is safely cut and the immediate threat is neutralized, do not attempt to turn the breaker back on. It is time to call in licensed experts for emergency HVAC services to diagnose and repair the dangerous electrical short.

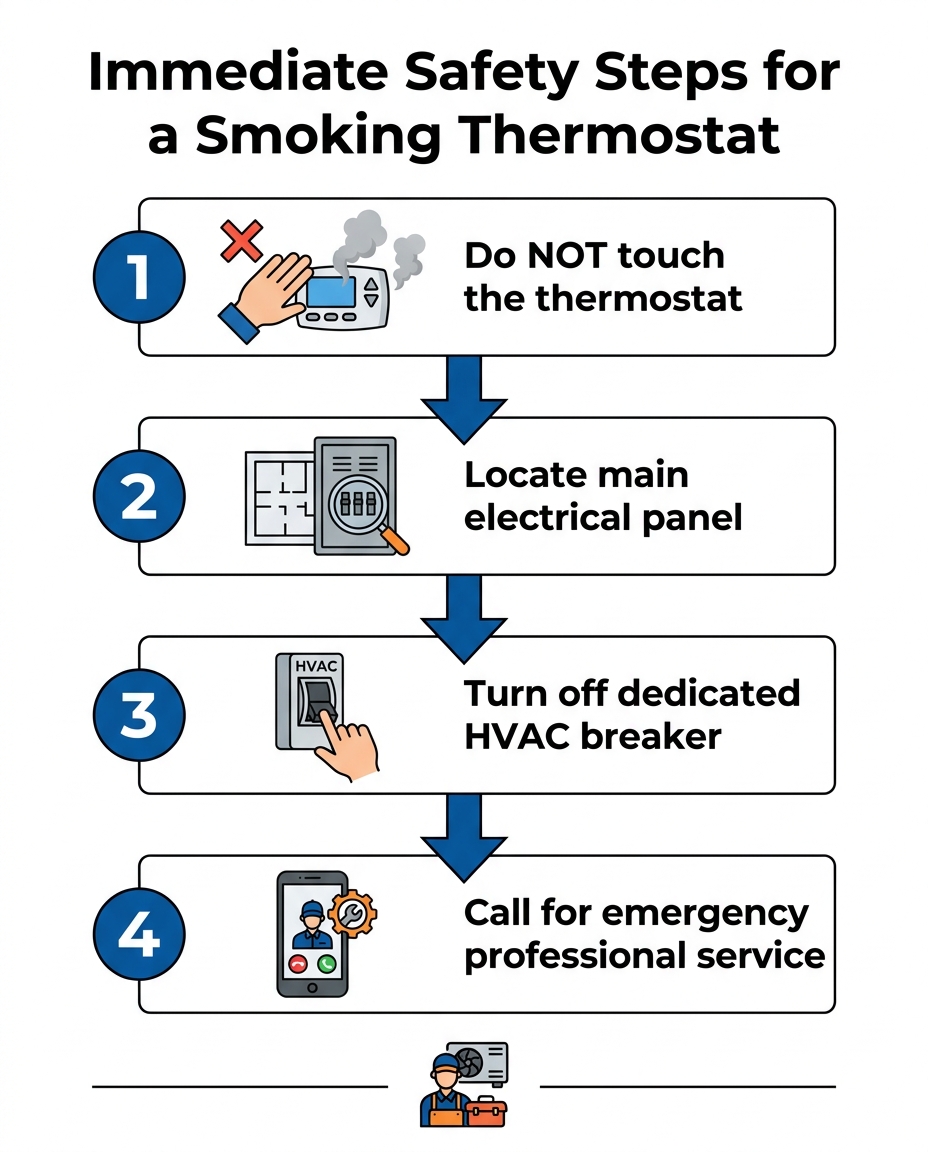

Immediate Safety Steps for a Smoking Thermostat

Why You Must Avoid Touching the Thermostat Interface

It is human nature to want to investigate a problem directly, especially when it involves an appliance you interact with every day. However, when a thermostat is smoking, the normal rules of operation no longer apply. Visible smoke is an undeniable indicator of an active electrical short where internal components are actively melting under extreme heat.

The Risk of Electrical Burns and Shock

The outer shell of your thermostat is made of plastic, which normally acts as an excellent insulator against electrical current. But when that plastic begins to melt and smoke, its structural integrity is entirely compromised. Touching the heated plastic housing can result in severe thermal burns. Worse, if the plastic has melted away internally, pressing a button or grabbing the sides could inadvertently push your fingers into direct contact with live, arcing electrical wiring, exposing you to a dangerous shock.

The Danger of Oxygen Introduction

There is another critical reason to keep your hands off the device: fire dynamics. An electrical short behind a wall or inside a closed plastic casing is often starved for oxygen. It smolders, creating thick, noxious smoke, but it may not immediately burst into open flames. If you attempt to pull the faceplate off the wall to inspect the wiring, you suddenly introduce a massive rush of fresh oxygen into the electrical box. This sudden influx of air can instantly cause a smoldering short to flash over into a larger flare-up, potentially igniting the surrounding drywall paper or wooden wall studs.

Reiterate this rule to everyone in your household: the only safe way to interact with a smoking electrical device is by cutting its power source remotely at the breaker panel. You must remove the electricity before you can safely address the equipment.

Understanding the Electrical Short: The 24-Volt C-Wire Connection

A pattern we see often on emergency calls is the misconception among homeowners that thermostats are perfectly safe because they run on "low voltage." While it is true that most residential thermostats operate on 24 volts rather than the 120 volts powering your wall outlets, low voltage does not mean low danger. When a dead short occurs, even a 24-volt C-wire thermostat connection can generate enough intense, localized heat to melt plastic housing and ignite surrounding debris.

How the Transformer Fails

Your HVAC system relies on a component called a transformer, typically located inside the indoor air handler or furnace. The transformer's job is to step down the high 120-volt household current to a manageable 24 volts to power the thermostat's control board. If this transformer malfunctions or blows, it can send a surge of excess electrical current directly up the small gauge wires to the wall unit. The delicate wiring inside the thermostat cannot handle this load, resulting in rapid overheating, melted insulation, and smoke.

The Hidden Warning Signs

Often, this type of electrical failure doesn't happen completely out of the blue. Frayed wiring hidden behind the wall can arc intermittently for days or weeks before a catastrophic short occurs. During this time, the arcing produces the distinct, toxic smell of burning electrical insulation—often described as smelling like fish or ozone. In many cases, these hidden electrical failures are the exact reason why an air conditioner isn't cooling properly just before the visible smoke finally appears. The system loses its communication link because the wires are degrading.

A critical warning: Repairing a shorted C-wire, replacing burnt wiring harnesses, or installing a new transformer requires a licensed professional. You should never attempt DIY wiring repairs on a system that has already experienced an active electrical short. The risk of rewiring a compromised circuit incorrectly is simply too high.

How Extreme Summer Heat Triggers HVAC Electrical Failures

Electrical components do not exist in a vacuum; they are heavily influenced by the environment around them. Continuous, high-capacity operation places immense stress on every part of your heating and cooling system, particularly the electrical connections that command the heavy machinery to turn on and off.

The Impact of Regional Climate

The regional climate plays a massive role in these breakdowns. In our years of experience serving Frederick, MD, we've seen how distinct temperature extremes, particularly in July when the heat index can soar, impact local homes. This relentless, oppressive heat forces local HVAC systems into continuous, non-stop operation just to maintain a livable indoor temperature. A peak summer cooling load in July forces transformers and contactors to operate under maximum electrical load for extended, uninterrupted periods. Over time, this continuous demand degrades the internal insulation of the transformer, making it highly susceptible to blowing out and sending a surge to the thermostat.

Thermal Expansion in Hidden Spaces

Furthermore, the wires connecting your system often run through attics, crawlspaces, or uninsulated exterior wall cavities. During a summer heatwave, the ambient temperature inside an attic can easily exceed 130 degrees. This extreme environmental heat causes the copper wiring and the plastic wire nuts to physically expand. When the system cycles off and cools down at night, the materials contract. Over years of operation, this constant thermal expansion and contraction can slowly loosen wire nuts and degrade terminal connections. A loose connection creates electrical resistance, resistance creates heat, and heat eventually leads to melting plastic and smoke. Older thermostats, whose internal components have already endured years of these thermal cycles, are particularly vulnerable to overheating when the system runs continuously during summer heat waves.

Burning Dust vs. Electrical Smoke: Knowing the Difference

Our dispatch team regularly fields calls about strange HVAC odors, and we always emphasize how important it is to distinguish between harmless, temporary odors and genuine electrical emergencies. While visible smoke is always a crisis, certain smells can sometimes cause unnecessary panic if you don't know what to look for.

When a heating system kicks on for the very first time in the autumn after a long period of summer dormancy, it is incredibly common to smell a "burning dust" odor. This happens because dust settles on the heat exchangers over the summer, and the initial ignition burns it off. This smell is generally organic, slightly musty, and dissipates entirely within 15 to 30 minutes.

Contrast this with the acrid, toxic smell of burning plastic, ozone, or melting rubber. An electrical short produces a sharp, chemical odor that catches in the back of your throat. It does not go away after a few minutes; it grows stronger as the wire insulation continues to melt.

• Odor Profile — Burning Dust (Harmless): Musty, organic, like a dusty radiator — Electrical Smoke (Emergency): Acrid, chemical, fishy, burning plastic or ozone

• Visual Signs — Burning Dust (Harmless): No visible smoke, just the smell — Electrical Smoke (Emergency): Visible wisps of smoke coming from the wall unit

• Typical Timing — Burning Dust (Harmless): First time turning on the heat in fall — Electrical Smoke (Emergency): Anytime, often during heavy summer cooling loads

• Danger Level — Burning Dust (Harmless): Low - normal operational byproduct — Electrical Smoke (Emergency): High - active electrical fire hazard

• Required Action — Burning Dust (Harmless): Open a window, wait 30 minutes — Electrical Smoke (Emergency): Shut off breaker immediately, call a pro

The golden rule: Visible smoke of any kind coming from a wall control is never normal and always constitutes an electrical emergency. To prevent dust buildup and catch frayed wiring before it becomes a dangerous fire hazard, investing in routine HVAC maintenance is essential. A technician will inspect and tighten low-voltage connections long before they have the chance to arc and smoke.

Frequently Asked Questions About Smoking Thermostats

Can a thermostat catch on fire?

Yes, while rare, a thermostat can catch on fire. The low-voltage wiring inside the wall can generate enough localized heat to ignite surrounding dust, drywall paper, or the device's plastic housing if a dead short occurs. This is why it is so critical to cut the power at the breaker the moment you suspect an electrical issue, preventing the heat from reaching the ignition point.

What to do if the thermostat smells like burning plastic?

Immediately turn off the HVAC breaker at your main electrical panel. Do not touch the thermostat itself, do not try to pull it off the wall, and call a licensed professional right away. A burning plastic smell means internal components are actively melting, which is an active fire hazard that requires the power to be cut remotely.

Why is my thermostat smoking during the summer?

Continuous AC operation during extreme heat stresses the system's transformer and 24-volt C-wire, leading to overheating, melted insulation, and visible smoke. When your system runs non-stop to combat high summer temperatures, older electrical components can fail under the sustained load, sending excess current to the wall unit.

Is a burning smell from the thermostat dangerous?

Yes. A burning electrical smell indicates melting components and an active fire hazard, requiring immediate power isolation. Unlike the temporary smell of burning dust when a furnace turns on in the fall, a chemical or plastic burning smell means the wiring is compromised and poses a severe threat to your home.

Will a tripped breaker stop a thermostat from smoking?

Yes, manually turning off the dedicated HVAC breaker cuts the electrical current, stopping the heat generation that causes the smoke. Once the electricity stops flowing through the shorted wires, the components will begin to cool down. However, the underlying damage remains, and the system must be repaired by a professional before power is restored.

Secure Your Home and Restore Your Cooling Safely

Once you have successfully flipped the breaker at your main electrical panel, take a deep breath. The immediate physical danger is mitigated, and you have successfully prevented a localized electrical short from escalating into a major home fire. However, the journey to restoring your home's comfort has just begun. Because the smoke was a symptom of a much larger electrical failure—likely a blown transformer or severely degraded wiring—professional diagnostic tools are absolutely required to find the root cause of the short.

Whether you need immediate summer cooling restoration or you are planning ahead for heating system repair after an electrical scare, our licensed experts ensure the wiring is safe, up to code, and ready to handle the demands of the season. Warner Service's reliable emergency services are designed to reassure panicked homeowners, providing the professional, safe assistance you need immediately after you secure the power. Don't leave your family's safety to chance; reach out to our certified technicians today to diagnose the short, replace the damaged components, and restore your peace of mind.
