Understanding the PVC Venting Requirements for High-Efficiency Furnaces

The Unexpected Chimney Challenge When Upgrading Your Heating System

Understanding the PVC Venting Requirements for High-Efficiency Furnaces is often the biggest hurdle homeowners face when replacing an aging heating system. At Warner Service, we frequently see homeowners planning an upgrade right now during the September pre-heating season, expecting a straightforward swap of their old equipment. Then, our HVAC technicians have to deliver unexpected news: your existing metal or masonry chimney cannot be used for the new unit, and new plastic pipes must be routed directly through the side of your house.

For many homeowners, this sounds like an unnecessary complication or a contractor upsell. However, upgrading the exhaust system is a critical life-safety and building code requirement. If you are exploring new HVAC services to improve your home's comfort, knowing why your chimney is suddenly obsolete is the first step toward a safe, efficient installation.

The shift from traditional metal flues to modern plastic piping comes down to simple physics and chemistry. High-efficiency furnaces operate fundamentally differently than the units built just a few decades ago. To capture more heat for your home, they change the temperature and the chemical makeup of the exhaust leaving the system. As our team always warns customers, venting these new systems into an old chimney is not just inefficient—it is actively dangerous.

The Mechanics of High-Efficiency Heating: Why the Exhaust is Different

To understand the new piping rules, you have to look at how modern heating technology has evolved. Furnace efficiency is measured by its Annual Fuel Utilization Efficiency (AFUE) rating. This percentage tells you how much of the fuel consumed is turned into usable heat for your home versus how much is lost as exhaust. When you schedule a heating system installation with our team, you generally choose between an 80% standard-efficiency model and a 90%+ high-efficiency condensing model.

The Standard 80% AFUE Furnace Process

A standard 80% AFUE furnace utilizes a single heat exchanger. It burns fuel, extracts a large portion of the heat, and sends the remaining combustion gases up the flue. Because 20% of the heat is left in those gases, the exhaust is incredibly hot—usually around 400 degrees Fahrenheit. This intense heat creates thermal buoyancy. The hot air naturally rises up through a traditional metal or masonry chimney and safely exits the roof. This is how heating systems in older homes in Frederick MD have operated for generations.

The Condensing Process in 90%+ Models

High-efficiency furnaces (90% to 98% AFUE) are built with a secondary heat exchanger. Instead of letting that 400-degree exhaust escape, the system routes the gases through this second chamber to squeeze out almost all the remaining thermal energy. By the time the exhaust is ready to leave the furnace, its temperature has dropped drastically to roughly 100 to 130 degrees Fahrenheit.

Because the exhaust gas is so cool, it completely lacks the thermal buoyancy needed to rise up a traditional chimney. It physically cannot draft naturally. Instead, the furnace uses a mechanical inducer motor to push the exhaust out of the home. This cooler, mechanically pushed exhaust is the primary reason the venting pathway must change entirely.

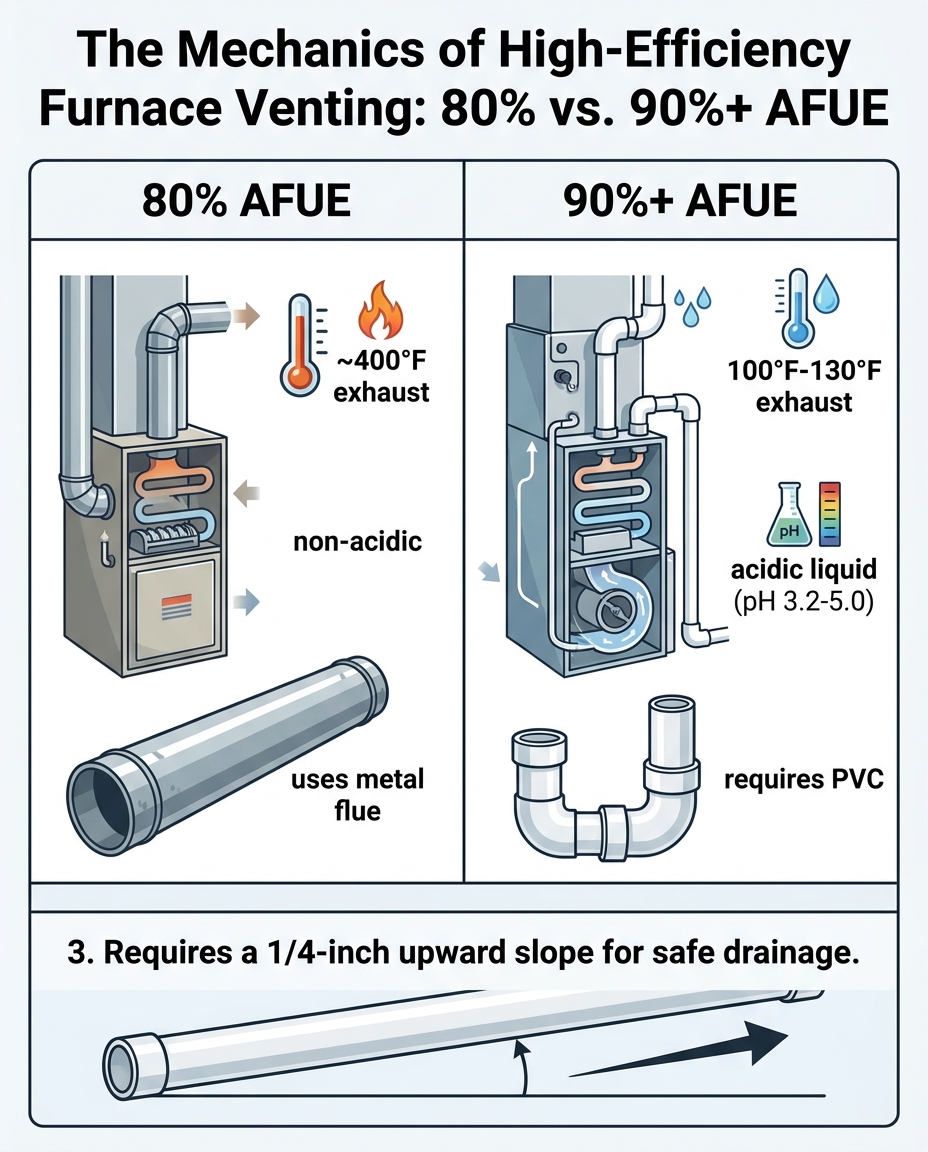

The Mechanics of High-Efficiency Furnace Venting: 80% vs. 90%+ AFUE

The Hidden Danger of Acidic Condensation on Metal Flues

The lack of upward draft is only half of the chimney challenge. The far more severe issue—and the reason building codes strictly forbid using old chimneys for new high-efficiency units—involves the chemical changes that happen when combustion gases cool down.

Why Condensate Becomes Acidic

When natural gas or propane burns, the combustion process creates water vapor, carbon dioxide, and trace amounts of other gases. In a standard furnace, these gases stay so hot that they remain in a vapor state all the way up the chimney. But in a high-efficiency furnace, the secondary heat exchanger cools the gases below their dew point. The water vapor condenses into a liquid.

As this water condenses, it absorbs the carbon dioxide and trace gases from the combustion process, creating carbonic acid. This liquid condensate is highly acidic, typically registering a pH level between 3.2 and 5.0. To put that into perspective, this condensation is roughly as acidic as tomato juice, black coffee, or certain sodas.

The Risk to Traditional Masonry and Metal Chimneys

In our years of servicing older homes across Frederick MD, our team has seen firsthand the damage caused when this acidic moisture is improperly routed into a traditional venting system. Many older homes feature unlined brick chimneys or galvanized metal flues. The acidic condensation will rapidly eat away at the mortar between the bricks, causing the chimney to crumble from the inside out. In a metal flue, the acid will rust and corrode the metal until holes form.

Once the venting system is compromised, dangerous combustion gases—including deadly carbon monoxide—can leak directly into your living spaces. Abandoning the old chimney and installing dedicated plastic piping is a non-negotiable safety measure we enforce to protect your home and family from this invisible threat.

Why PVC is the Gold Standard for Modern Furnace Venting

Because metal and masonry cannot withstand the acidic runoff of a condensing furnace, the HVAC industry relies on industrial plastics. Polyvinyl chloride (PVC) is the most common material used for this application. PVC is inherently resistant to the acidic corrosion that destroys metal flues, making it the perfect conduit for low-temperature, high-moisture exhaust.

Material differences our technicians typically use:

• Standard PVC (Schedule 40): The most common white plastic piping used for standard high-efficiency furnace exhaust. It safely handles the 100-to-130-degree temperatures and acidic moisture.

• CPVC (Chlorinated Polyvinyl Chloride): A slightly different plastic compound that can withstand higher temperatures. It is sometimes required by specific local codes or for larger commercial units, though standard PVC is typically sufficient for residential furnaces.

For our installation crews at Warner Service, using PVC is not just a preference; it is a strict requirement under the International Residential Code (IRC) mechanical venting standards. Our commitment to strict adherence to local building codes ensures that every high-efficiency furnace is vented properly to completely eliminate carbon monoxide risks. Upgrading the heating system in older homes in Frederick MD means doing the job right by the book, prioritizing your safety above all else.

Direct Vent Systems: Decoding One-Pipe vs. Two-Pipe Configurations

When transitioning to PVC venting, you will notice that the pipes are routed horizontally through the side of your home rather than vertically through the roof. Depending on your specific furnace and home layout, the installation will utilize either a one-pipe or a two-pipe configuration. The two-pipe setup, often referred to as a direct vent system, is the industry standard for modern installations.

• Single-Pipe System — Air Intake Source: Draws combustion air from inside the home (basement/utility room). — Exhaust Method: Vents acidic exhaust outside through a single PVC pipe. — Best Application: Larger, drafty spaces where indoor air is plentiful.

• Two-Pipe (Direct Vent) — Air Intake Source: Pulls fresh combustion air directly from outside via a dedicated PVC pipe. — Exhaust Method: Vents acidic exhaust outside through a second PVC pipe. — Best Application: Modern, tightly sealed homes; maximizes energy efficiency.

Why our installers heavily prefer two pipes: A single-pipe system uses the conditioned air you have already paid to heat to fuel the combustion fire, which can create negative pressure in the house and pull cold drafts in through window seams. A two-pipe direct vent system operates in a closed loop. It pulls fresh air from outside, burns it, and sends the exhaust back outside. This preserves your indoor air quality and keeps your home's pressure balanced.

During the September pre-heating season, our technicians carefully plan where these two pipes will exit the house. Building codes require specific exterior termination clearances to ensure the exhaust gas is not accidentally sucked back into the fresh air intake pipe or blown into nearby windows.

Critical Code Requirements: Proper Sloping and Freezing Prevention

Routing PVC pipes to the exterior of a home requires exact precision. It is not as simple as drilling a hole and pushing a pipe through. The physical installation is governed by strict mechanical codes designed to manage the acidic condensation safely.

The essential rules of PVC installation we follow:

1. The 1/4-Inch Slope Rule: Every horizontal run of PVC exhaust piping must maintain an upward slope of at least 1/4 inch per foot as it moves away from the furnace.

2. Gravity Drainage: This precise slope ensures that as the exhaust vapor condenses into liquid inside the pipe, gravity pulls the acidic water safely back down into the furnace's internal condensate trap and drain line.

3. Minimizing Elbows: The pipe run must use the absolute minimum number of bends and elbows to reduce airflow resistance and prevent moisture from pooling in the joints.

4. Proper Support: The plastic piping must be secured with specialized hangers at regular intervals to prevent sagging over time, which would create low spots where water could collect.

The sloping requirement is particularly critical given our regional climate reality. Frederick, MD experiences freezing winter temperatures. If a PVC pipe sags or is improperly sloped, pooled condensation will sit in the pipe. When a deep freeze hits, that pooled water will turn into a solid ice blockage. Modern furnaces are equipped with pressure sensors; if they detect a blocked exhaust pipe, they will trigger a safety lockout and shut down the system completely during the coldest days of the year.

Because of the severe life-safety implications of carbon monoxide and the precise mathematical requirements for proper drainage, venting installation requires a licensed professional. This is never a project for weekend DIY work. Upgrading older homes in Frederick MD requires deep knowledge of structural routing and code compliance, which is why we always recommend relying on certified experts.

Fall Preparation: Protecting Your PVC Vents Before Winter Arrives

Once your high-efficiency furnace is installed, the exterior PVC pipes require minimal but essential upkeep. Our service technicians always advise customers that the best time to address this is during the September pre-heating season, long before the first frost arrives. Because these pipes sit relatively low on the exterior wall of your home, they are vulnerable to environmental blockages.

Pre-winter vent checklist:

• Clear fall debris: Check the termination points on the side of your house. Remove any accumulated autumn leaves, overgrown bushes, or tall grass that might obstruct the airflow.

• Inspect for pests: Over the summer months when the furnace sits idle, mice, chipmunks, and insects often find the cool PVC pipes to be an attractive place to build nests. Shine a flashlight into the pipes to ensure they are clear.

• Plan for snow accumulation: Heavy winter snowfall can easily cover low-clearance vents. Make a mental note of where your pipes are located so you can safely shovel snow away from them after a storm. Never let snowdrifts bury the intake or exhaust pipes.

The most reliable way to ensure your entire system, including the internal condensate drainage and exterior venting, is ready for winter is to schedule a professional inspection. In our experience, enrolling in a comprehensive heating maintenance plan ensures that a licensed technician verifies the slope, clears the condensate trap, and tests the pressure sensors before you ever need to turn the heat on.

Navigating the Upgrade Process: Codes, Safety, and Next Steps

Discovering that your old chimney is obsolete can be surprising, but transitioning to dedicated PVC venting is the hallmark of a high-quality, safe, and efficient heating upgrade. It proves that your new system is extracting the maximum amount of energy from your fuel, leaving only cool, condensation-heavy exhaust behind.

Understanding the Scope of Work

When retrofitting older homes in Frederick MD, our installation team must carefully plan the route for the new PVC pipes. This often involves navigating around existing plumbing, finished basement ceilings, and historic architectural features. While this initial transition requires specific code compliance and careful labor, the long-term result is vastly superior energy efficiency and absolute peace of mind regarding carbon monoxide safety.

Because high-efficiency condensing furnaces significantly reduce energy consumption, they often qualify for various incentive programs. General energy rebates or federal tax credits may apply to qualifying high-efficiency installations. We advise readers to consult a tax professional or local utility provider to verify current programs. If you are planning an upgrade, exploring flexible financing options can help make the transition to a 90%+ AFUE system highly manageable.

Frequently Asked Questions About High-Efficiency Furnace Venting

Curious about what a furnace replacement costs in Frederick County? Keep reading to understand the specific venting and installation factors that influence the overall scope of work for your home.

Why do high-efficiency furnaces vent with PVC?

High-efficiency furnaces extract so much heat from the combustion process that the exhaust gas cools down and condenses into a highly acidic liquid. PVC plastic is required because it is completely resistant to this acidic corrosion. If metal pipes were used, the acid would quickly eat through them and cause dangerous leaks.

Can I vent a high-efficiency furnace into a chimney?

No, you cannot vent a modern condensing furnace into a traditional metal or masonry chimney. The exhaust gases are too cool to rise naturally up a tall chimney, and the acidic condensation would destroy the brick mortar or metal liner. Building codes strictly prohibit this practice to prevent carbon monoxide from entering the home.

Does a 90% furnace need 2 PVC pipes?

While a 90% furnace can sometimes be installed with a single exhaust pipe, our team heavily prefers—and manufacturers often require—a two-pipe (direct vent) system. The second pipe pulls fresh combustion air directly from outside, which improves the system's efficiency and prevents the furnace from pulling cold drafts into your home.

What happens if a furnace vent pipe freezes?

If a PVC vent pipe is improperly sloped or blocked by snow, the condensation inside can freeze into solid ice. When this happens, the furnace's internal safety sensors will detect the blockage and immediately shut down the heating system to prevent dangerous exhaust from backing up into your house.

How often should exterior PVC furnace vents be inspected?

Exterior PVC vents should be visually inspected by the homeowner at least twice a year—once in the early fall before heating season begins, and periodically throughout the winter after heavy snowfalls. A licensed HVAC technician should also inspect the entire venting and drainage system annually during routine maintenance.

Are there alternative materials to PVC for condensing furnace exhaust?

While standard Schedule 40 PVC is the most common residential material we install, some local codes or specific high-heat applications require CPVC (Chlorinated Polyvinyl Chloride) or specialized polypropylene venting. Traditional materials like galvanized steel, aluminum, and copper are strictly forbidden due to the acidic nature of the exhaust.

Ensure a Safe and Efficient Heating Season

Understanding the PVC venting requirements for high-efficiency furnaces ultimately comes down to protecting your home. The transition away from traditional chimneys is not an inconvenience; it is the ultimate safeguard against acidic exhaust and carbon monoxide exposure. When you invest in a 90%+ AFUE furnace, you are choosing superior energy performance, and that performance requires specialized, code-compliant ventilation.

As you prepare for the September pre-heating season, prioritize proper installation over quick shortcuts. Ensure your exterior vents are clear, your pipes are properly sloped, and your system is maintained by a licensed professional. If you are ready to upgrade your heating system and want the peace of mind that comes with strict safety compliance, reach out to our trusted local experts at Warner Service to explore your installation options today.
