Diagnosing a Failing Thermocouple on a Gas Water Heater

The Chilling Surprise of a Blown-Out Pilot Light

You step into the shower, expecting a warm, comforting stream of water, but instead, you are hit with a freezing blast. Diagnosing a failing thermocouple on a gas water heater usually starts exactly like this—with a sudden, unexpected loss of hot water that leaves you shivering. As outdoor temperatures begin to drop across Frederick, MD, waking up to a cold shower is more than just an inconvenience; it is a highly disruptive start to your day. When you head down to the basement or utility closet to check the water heater, you will likely find a common scenario: the pilot light has completely gone out.

This discovery immediately introduces a dilemma for most homeowners. Is it just a random draft that blew out the small flame, or has a critical internal component failed? Recognizing the signs of hardware failure is the essential first step before you seek professional help. A blown-out pilot light might seem like a minor nuisance, but it is often your system's way of signaling that a vital safety sensor is no longer functioning correctly.

If you need immediate assistance restoring your hot water, our expert plumbing services can safely evaluate your system and get your daily routine back on track.

What Is a Thermocouple and How Does It Work?

Before you can understand why your pilot light refuses to stay lit, it helps to know exactly what this component is doing inside your appliance. A thermocouple is a small, pencil-like metal sensor positioned directly next to the pilot flame. While it might look like a simple piece of wire or tubing, it is actually a highly sensitive thermoelectric device. During the September pre-heating season, ensuring this small sensor operates correctly is vital for uninterrupted hot water.

The Thermoelectric Process Explained

The science behind this component is fascinating but simple: it converts heat directly into electricity. The sensor is made of two dissimilar metals joined together at the tip. When the pilot flame heats this metallic junction, a physical reaction occurs that generates a tiny electrical current. We measure this current in millivolts—typically between 20 to 30 millivolts for a standard residential water heater.

Independent power generation: One of the most important aspects of this thermoelectric process is that it operates entirely independently of your home's main electrical grid. Even during a total power outage, your gas water heater can continue to function because the pilot flame itself generates the necessary electricity to keep the system running safely.

The Role of the Electromagnet

This tiny electrical voltage does not just disappear into the machine; it has a very specific destination. The electrical current travels down the copper wire of the sensor and into the main gas control valve. Inside that valve sits a small electromagnet. As long as the 20 to 30 millivolts of electricity flow continuously, the electromagnet remains powered on.

This electromagnet is responsible for holding a spring-loaded valve open. As long as the valve remains open, natural gas or propane can flow freely to the pilot light and the main burner. It requires absolute precision and a constant, steady flame to maintain the magnetic field. If the voltage drops even slightly, the magnetic hold weakens.

The Crucial Safety Role of Your Water Heater's Thermocouple

It is easy to view a sensor that constantly shuts off your hot water as an annoying nuisance. However, this component is actually a life-saving safety mechanism designed to protect your home. In Frederick, MD, where reliable indoor heating and plumbing are necessities, understanding this safety feature can change how you view a malfunctioning water heater.

Preventing Dangerous Gas Leaks

Consider what would happen if the pilot light was extinguished by a strong draft or a temporary interruption in the gas supply, but the main gas valve remained open. Uncombusted natural gas or propane would continue to pour into the combustion chamber, eventually spilling out into your utility room or basement. This creates a severe explosion hazard and poses serious health risks to anyone in the house.

The sensor acts as your primary line of defense against this exact scenario. It is the only component telling the main gas valve whether a safe, active flame is present to burn the incoming fuel.

The Spring-Loaded Shut-Off Mechanism

The mechanical fail-safe design of the gas valve is brilliant in its simplicity. When the pilot light goes out, the metallic tip of the sensor rapidly cools down. As the temperature drops, the thermoelectric process stops, and the electrical voltage drops to zero.

The immediate reaction: Without that tiny electrical current, the electromagnet inside the gas valve instantly loses its power. The moment the magnet deactivates, a heavy spring forces the gas valve to snap shut. This entire shut-off process happens in under a minute. Because the system requires active electricity to stay open, a failed sensor will always default to the "closed" and safe position, completely halting the flow of gas into your home.

Recognizable Symptoms of a Failing Thermocouple

Because the sensor is designed to fail in the closed position, a degraded component will simply refuse to let the gas valve open. Homeowners can recognize this failure through a few clear, observable symptoms without ever attempting dangerous DIY testing. As we move through the September pre-heating season, watch out for these common warning signs:

• The immediate shut-off: The pilot light goes out the exact second you release the gas control button, no matter how long you hold it down to warm up the sensor.

• Frequent relighting: The pilot light successfully ignites and stays on for a while, but you find yourself having to relight it multiple times throughout the week.

• Visual flame issues: The pilot flame appears weak, burns yellow instead of crisp blue, or is physically blowing away from the top of the sensor rather than enveloping it.

• Visible component damage: A visual inspection of the combustion chamber reveals heavy soot buildup, severe corrosion on the metal rod, or a sensor that has been bent out of alignment.

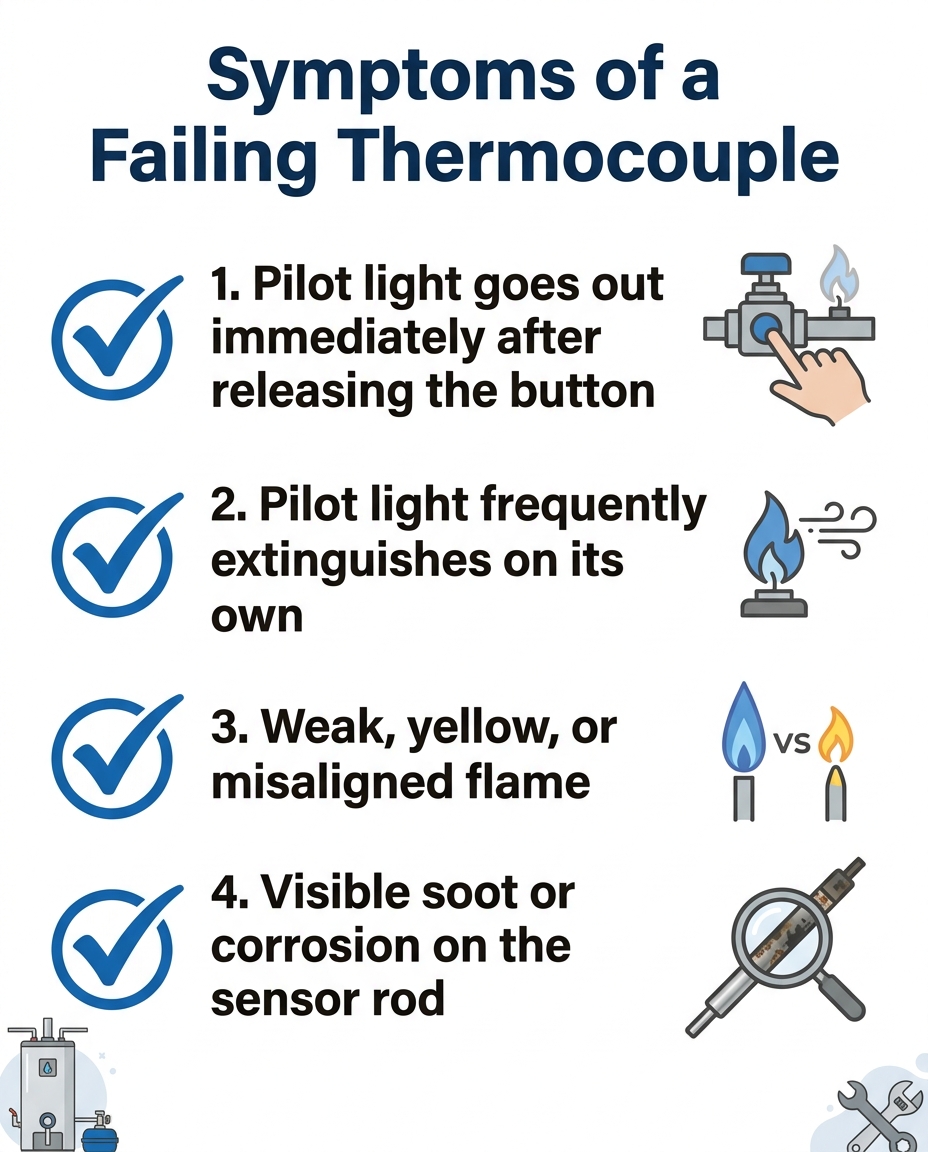

Symptoms of a Failing Thermocouple

If you notice any of these symptoms, the sensor is likely failing to generate the necessary voltage to keep the safety valve open.

What Causes a Thermocouple to Degrade Over Time?

Like any mechanical part subjected to harsh conditions, this safety sensor experiences a natural wear and tear process. It lives its entire operational life engulfed in a small fire. Over years of constant use in Frederick, MD homes, this environment takes a heavy toll on the materials.

Constant Heat Exposure and Thermal Fatigue

The most common cause of component failure is simply thermal fatigue. The metal casing of the sensor is designed to withstand high temperatures, but years of continuous heat exposure eventually cause the dissimilar metals inside to degrade. As the metals break down, their ability to convert heat into electricity diminishes. Eventually, the sensor can no longer generate the minimum 20 millivolts required to hold the electromagnet open, even when the flame is perfectly hot and blue.

Carbon Buildup and Soot Interference

Sometimes the sensor itself is perfectly fine, but it is being smothered. If your water heater's burner is dirty or suffering from poor combustion, it will produce soot.

The insulation effect: Carbon buildup acts as a highly effective thermal insulator. When soot coats the outside of the metal probe, it blocks the heat of the pilot flame from reaching the internal metals. Without sufficient heat transfer, the voltage drops, and the gas valve snaps shut.

This process of degradation is very similar to other forms of appliance wear and tear. In fact, ignoring a dirty burner can lead to cascading issues, much like how sediment buildup shortens your water heater life by forcing the system to work harder than necessary. Physical jarring during a move or improper installation can also push the sensor out of alignment with the flame, preventing it from getting hot enough to function.

The Hidden Dangers of DIY Gas Water Heater Diagnostics

When the hot water stops flowing during the September pre-heating season, it is tempting to look up a quick online tutorial and try to fix the problem yourself. However, we must strictly enforce safety constraints when it comes to gas appliances. Homeowners should never attempt to test or replace this component on their own.

Why Multimeter Testing is Not for Homeowners

Many online videos suggest using a digital multimeter to test the millivolt output of the sensor. What these videos often fail to emphasize is that this process requires exposing live gas valve terminals and working directly with the appliance's internal mechanics while the gas is turned on. Touching gas valve electronics without professional training can permanently short out the main control valve, turning a minor sensor replacement into a massive, costly repair.

The Risks of Tampering with Gas Valves

Tampering with gas valves, supply lines, or sealed combustion chambers without proper licensing is highly dangerous.

• Unscrewing the sensor nut — Hidden Danger: Cross-threading the soft metal connections on the main gas valve.

• Replacing the probe — Hidden Danger: Improperly seating the new sensor, creating an undetectable, silent gas leak.

• Cleaning the combustion chamber — Hidden Danger: Damaging the fragile burner assembly or disrupting the air-to-fuel ratio.

Safe diagnostics require specialized tools, combustible gas leak detectors, and rigorous professional training. A licensed technician knows exactly how to test the electrical output safely and ensure the system is completely sealed before turning the unit back on.

Proactive Maintenance: Catching Sensor Failures Early

The best way to handle a failing safety sensor is to catch it before it leaves you shivering in the shower. Routine maintenance is your best tool for preventing emergency breakdowns, especially as we approach the high-demand winter season. Early fall is the perfect time to address these issues, preventing sudden hot water loss when Frederick, MD enters its freezing winter months.

Having a professional inspect your water heater while the weather is still mild in the September pre-heating season provides immense peace of mind. During a routine visit, a technician will clean away the carbon buildup and soot that insulates the sensor. They will also safely test the millivolt output to see if the metals are suffering from thermal fatigue.

Catching a degrading sensor early means it can be addressed on your schedule, rather than at 6:00 AM on a freezing Tuesday. Warner Service's prompt emergency response and comprehensive maintenance plans are designed to catch failing sensors before they cause a total loss of hot water. By keeping up with a routine maintenance plan, you ensure your safety mechanisms are always operating at peak performance.

Frequently Asked Questions About Water Heater Thermocouples

How do I know if my thermocouple is bad?

The most obvious sign of a bad sensor is a pilot light that immediately goes out the moment you release the gas control knob. You might also notice the pilot light frequently extinguishing on its own every few days. If the flame is strong and blue but the system still shuts down, the sensor is likely failing to send the required voltage to the gas valve. A licensed professional in Frederick, MD can safely test the exact electrical output to confirm the diagnosis.

Will a water heater work with a bad thermocouple?

No, a gas water heater will not function with a bad sensor. This component acts as a critical safety fail-safe; if it cannot generate an electrical current, the spring-loaded main gas valve will automatically snap shut. This prevents unburned gas from leaking into your home, meaning you will not have any hot water until the component is professionally addressed.

What causes a thermocouple to fail?

The most common cause of failure is thermal fatigue from years of continuous exposure to the pilot flame. Over time, the extreme heat degrades the dissimilar metals inside the probe, reducing their ability to generate electricity. Additionally, heavy soot and carbon buildup can coat the outside of the probe, acting as an insulator that blocks the heat from reaching the internal metals.

Can you clean a thermocouple instead of replacing it?

Yes, in some cases, gently cleaning a soot-covered sensor can restore its function if the internal metals are still healthy. However, cleaning requires opening the combustion chamber and handling delicate gas components, which poses a risk of creating gas leaks or damaging the burner. Because of these safety risks, cleaning or replacing the sensor should always be left to a trained professional.

How long does a gas water heater thermocouple typically last?

A standard gas water heater sensor typically lasts between 5 to 10 years, depending on usage, water heater quality, and maintenance frequency. Regular professional maintenance can extend its lifespan by keeping the burner clean and preventing excessive soot buildup. If your water heater is nearing the decade mark, it is wise to have a professional inspect the internal components before the heavy demands of winter arrive.

Secure Your Hot Water Supply Today

Diagnosing a failing thermocouple on a gas water heater ultimately comes down to recognizing that your system is actively protecting you. When the pilot light refuses to stay lit, that vital safety feature is doing exactly what it was designed to do: shutting off the gas to prevent a dangerous leak in your home.

Because these systems involve combustible natural gas and delicate safety valves, attempting DIY gas repairs is never worth the risk to your family or your property. As temperatures drop in Frederick, MD, you deserve the peace of mind that comes with a safe, reliable hot water supply. If you are struggling with a pilot light that will not cooperate, reach out for emergency plumbing repair to get the safe, professional restoration your home needs.
